Description:

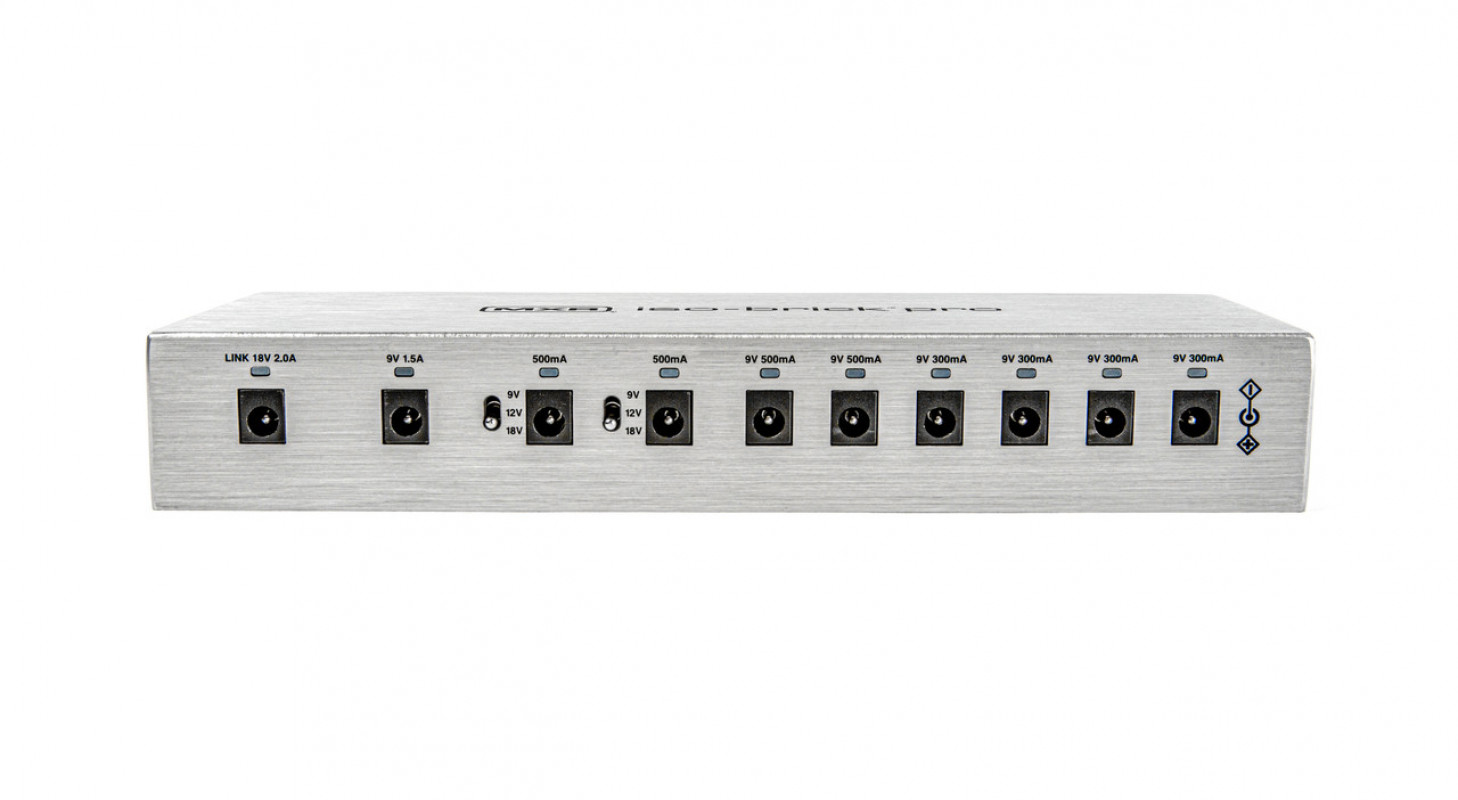

The MXR ISO-Brick Pro features 10 completely isolated outputs to preserve signal quality and eliminate ambient noise.
To meet a wide range of requirements, this power supply offers six fixed outputs: two 9V DC at 500 mA, and four 9V DC at 300 mA, along with two outputs with selectable voltage of 9/12/18V DC at 500 mA. Even multi-effects units that require high current are accommodated with a dedicated output of 9V DC at 1.5 A.
The MXR ISO-Brick Pro also includes a dedicated output of 18V DC at 2.0 A, allowing you to connect to a secondary power source, such as an MXR ISO-Brick or ISO-Brick Mini power supply, increasing the number of powered pedals. With its compact and lightweight design, this power supply is perfect for fitting under most pedalboards on the market and comes with all the necessary mounting brackets and screws for installation.
Technical specifications:
| Input | 100-240V - 50/60 Hz 1.5 A |
|
Output | 42W MAX; 4x 9V at 300 mA, 2x 9V at 500 mA, 2x 9/12/18V at 500 mA, 1x 9V 1.5 A, 1x 18V 2 A |
|
Dimensions | 235 x 88 x 37 mm |
|
Weight | 0.84 kg |
Additional info:
| Country of origin: | United States |
| Condition: | New |
| Warranty: | 2 years |
